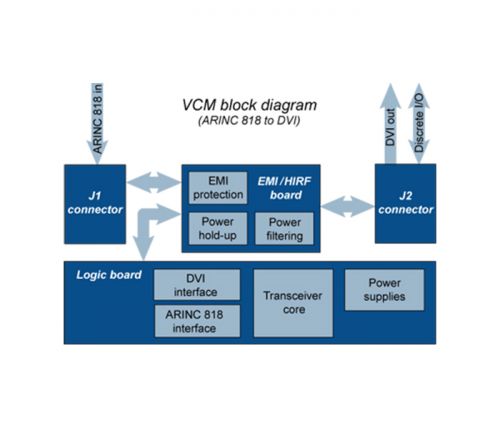

arinc 818 converter rugged flyable - vcm block
arinc 818 converter rugged flyable - MC VCM VCM
arinc 818 converter rugged flyable - MC VCM
arinc 818 converter rugged flyable - VCM100
arinc 818 converter rugged flyable - vcm block

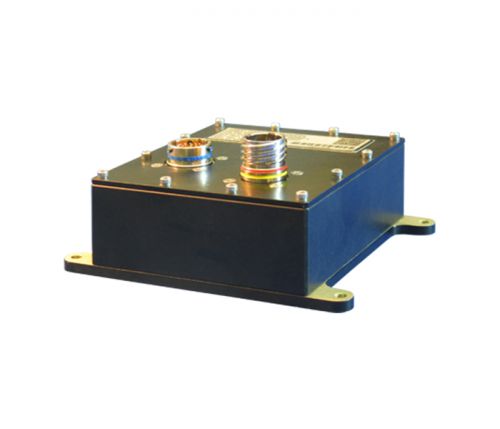

VCM Video Converter Module

The VCM is a flyable and rugged version of GRT’s Stand-Alone Module for ARINC 818, which has proven itself for years in labs, simulator settings and aircraft production facilities.
A flight-hardened VCM can be ordered for DVI or VGA to ARINC 818, and ARINC 818 to DVI. In addition, custom analog conversions (NTSC, PAL, STANAG 3350, RS-170) are also possible on demand.
The VCM is matched to your ICD and can be certified to DO-254 (Level B) and DO-160. Four mounting options provide maximum flexibility where space is precious.

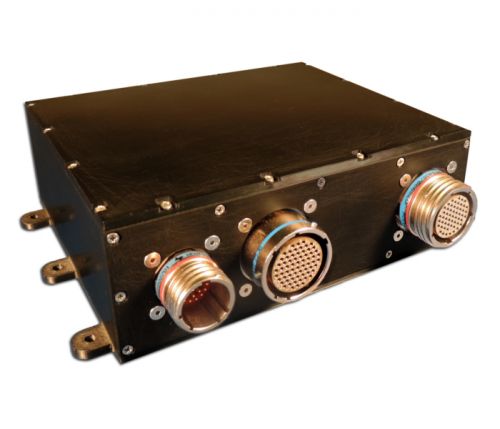

Multi-channel video converter module, the new MC-VCM increases the switching or conversion capacity. Flyable and rugged, the MC-VCM is ideal for use in harsh environments, such as those encountered in turbo-props and helicopters.
Each MC-VCM is factory configured for one of the following :
– 4 ARINC 818 conversion channels to or from other protocols (DVI, VGA, Ethernet, HD-SDI, NTSC/PAL, or STANAG 3350)
– 8 ARINC 818 cross-point switching channels

Description
Attributes
Reference
Documents

Applications

  • Simulation
  • Labs and simulator settings
  • Aircraft production

Key features

  • 16 to 32 VDC power input per MIL-STD-704F and RTCA DO-160F hardware qualification
  • HIRF protected, EMI shielded design
  • Robust 38999 Series circular connectors

Configurations

  • DVI to ARINC 818
  • ARINC 818 to DVI
  • ARINC 818 to VGA
  • ARINC 818 to analog (NTSC, PAL, STANAG 3350, RS-170) (custom)
  • Analog (NTSC, PAL, STANAG 3350, RS-170) to ARINC 818 (custom)

Physical specifications

  • Size envelope (exclud. connector and bracket) : 113 x 98 x 35 mm
  • Weight : 0.64 kg
  • Fiber : 850 nm, multimode
  • Connector : D38999, Size 12 shell
  • ARINC 801 1.25 mm optical fiber
  • Power : 6W

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

Video

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 6,375 Gbps, 8,5 Gbps
Form Factor Module
Supplier Great River Technology
Interface ARINC 818, DVI
Link Optical fiber
Channels’ number 1, 4, 8
  • VCM
    Rugged ARINC 818 converter for ARINC 818 to DVI, VGA or analog conversion.
  • MC-VCM
    Flyable and rugged multi-channel ARINC 818 converter for ARINC 818 to or from other protocols conversion.
