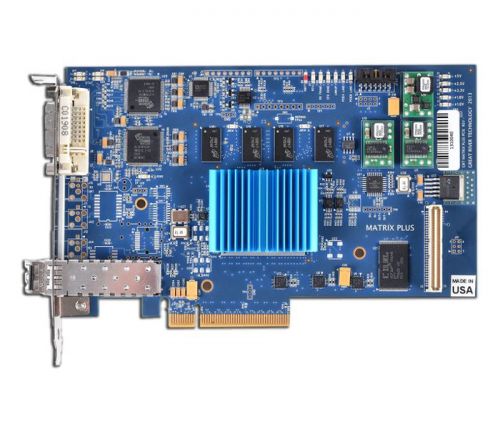

arinc 818 acquisition generation board - Matrix Plus down

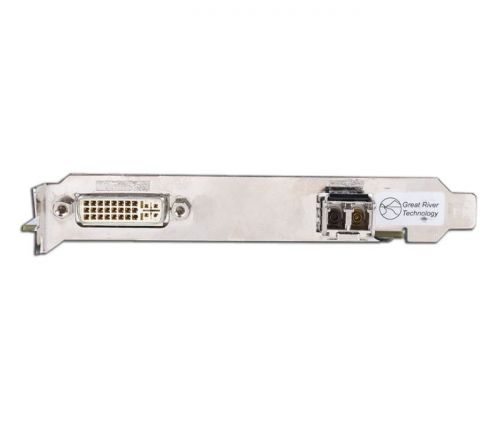

arinc 818 acquisition generation board - Matrix Plus flat
arinc 818 acquisition generation board - Matrix Plus 1
arinc 818 acquisition generation board - Matrix Plus down
arinc 818 acquisition generation board - Matrix Plus flat

Matrix

Great River Technology’s Matrix Series are available in PCIe x4 and XMC form factors. It can be used to meet the needs for capturing, recording, analysis and generation of video on ARINC 818 bus. These boards support ARINC 818 compliant with interfaces from 1.0625 Gbps to 4.25 Gbps. A single board can function as both an A818 receiver and A818 transmitter.
The boards are factory-configured to match the link speed, image resolution and pixel format of your ARINC 818 Interface Control Document (ICD).

Description
Attributes
Reference
Documents

Applications

  • Avionics video
  • ATP for production displays
  • Display development
  • Sensor arrays
  • Cockpit simulations
  • Video generation
  • High-speed video recording

Matrix Plus

  • ARINC 818 acquisition/generation
  • Up to 15 ICDs
  • Compatible with all ARINC 818 protocols
  • Bitrate from 1 to 4 Gbps
  • DVI to ARINC 818 conversion
  • PCIe x4 host bus
  • DVI or VGA connector
  • Drivers and SDK for Windows XP, 7, 8, 10 and Linux

Matrix

  • ARINC 818 acquisition/generation
  • Compatible with all ARINC 818 protocols
  • Bitrate from 1 to 4 Gbps
  • DVI to ARINC 818 conversion
  • PCIe x4 or XMC host bus
  • DVI or VGA connector
  • Drivers and SDK for Windows XP, 7, 8, 10 and Linux

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

Video

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps
Form Factor PCIe, XMC
Supplier Great River Technology
Interface ARINC 818, DVI
Link Optical fiber
Channels’ number 1
  • Matrix Plus PCIe x4
    PCIe x4 ARINC 818 acquisition board, up to 15 ICDs at link rates of 1.0625, 2.125, 3.1875 or 4.25 Gbps.
  • Matrix PCIe x4
    PCIe x4 ARINC 818 acquisition board, with 1 ICD at link rates of 1.0625, 2.125, 3.1875 or 4.25 Gbps.
  • Matrix XMC
    XMC ARINC 818 acquisition board, with 1 ICD at link rates of 1.0625, 2.125, 3.1875 or 4.25 Gbps.
