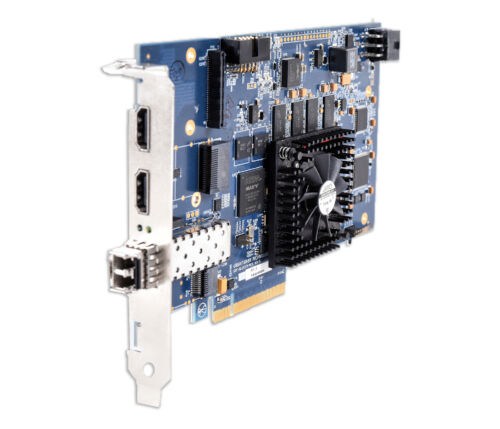

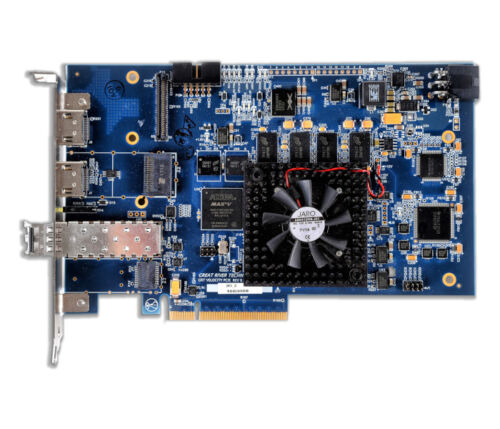

Velocity

Velocity series is a new generation of frame grabbers enables ARINC 818 systems to utilize ultra-resolution graphics such as 4K. Link speeds beyond 8 Gbps and PCIe Gen3 transfer rates greater than 4 Gbps.
Velocity adds the power of PCIe Gen3 x8 interface coupled with two high-speed DDR3 memory banks. All the while, it retains features pioneered for Matrix Plus Series boards. A single Velocity card can be configured for up to 15 ICDs. Each mode matches one ICD : link speed, image resolution, and pixel format.
Velocity boards can support 3 ARINC 818 functions : receiver, transmitter and converter.

Technical sheet
Description
Attributes
Reference

Applications

  • Avionics video
  • ATP for production displays
  • Display development
  • Sensor arrays
  • Cockpit simulations
  • Video generation
  • Ultra-resolution, high-speed video recording

Benefits

  • Up to 15 ICDs
  • PCIe Gen3 x8 interface
  • 4K ultra high-resolution
  • 3 ARINC 818 functions :
    • Receiver
    • Transmitter
    • Converter

Key features

  • FC-PH Revision 4.3, ARINC 818-2 ADVB high data rate
  • PCIe Gen3 x8 : >4 Gbps
  • Memory : 2 banks of 128 Mb
  • Power requirement : 20W @ 12V
  • Operating system : Windows 7, 8, 10 64 bits
  • Form factor : PCIe half-length

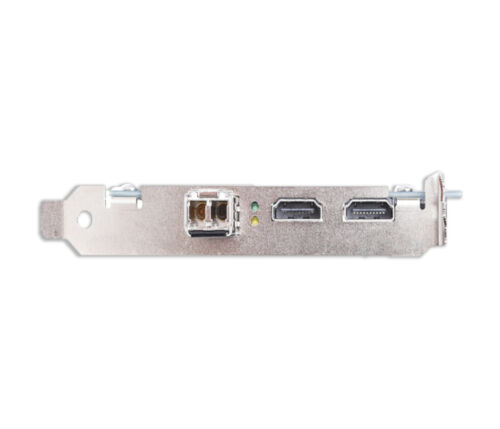

  • Connectors : HDMI
  • Operating temp. : 0-50°C

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 5 Gbps, 6,375 Gbps, 8,5 Gbps
Form Factor PCIe
Supplier Great River Technology
Interface ARINC 818, HDMI
Channels’ number 1
  • ARINC 818 receiver
    Velocity boards can capture ARINC 818 video to the software GUI and permit real-time viewing of embedded ARINC 818 data. The boards have a dedicated HDMI 2.0 video port to view the incoming ARINC 818 video on a monitor.
  • ARINC 818 transmitter
    Load test images and embedded header data into the Velocity board and transmit using the test software.
  • ARINC 818 converter
    A Velocity board can be factory configured as a converter for HDMI to ARINC 818 or ARINC 818 to HDMI.
