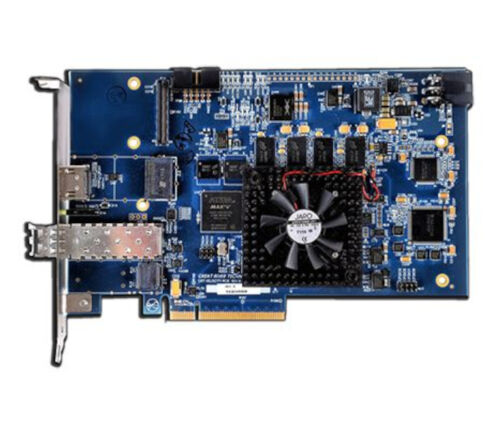

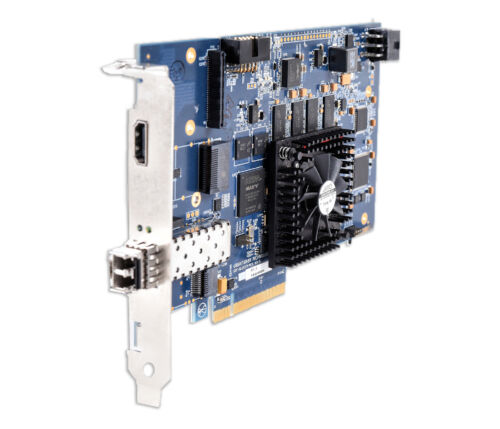

Velocity XI

The Velocity XI has the same hardware capabilities as the Velocity but allows in the field configuration.

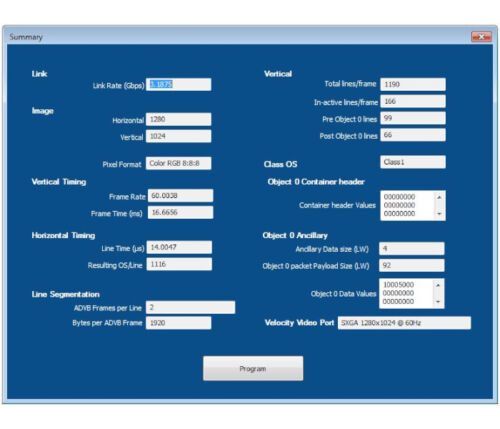

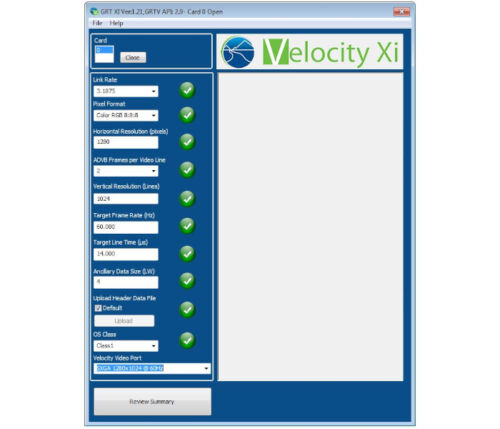

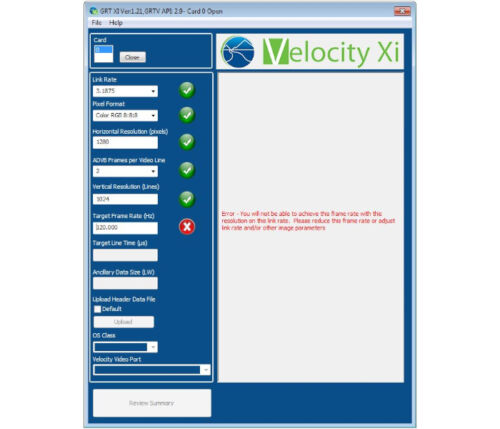

The Velocity XI allows the user to implement a new ARINC 818 ICD into hardware in less than a minute using the Velocity XI Configuration Tool, virtually any ICD. Once the Velocity XI configuration tool has been used to implement an ICD into the card, then the Velocity XI card will operate as a single format Velocity card, that will both receive and transmit ARINC 818.

Technical sheet
Description
Attributes
Reference

Applications

  • Avionics video
  • ATP for production displays
  • Display development
  • Sensor arrays
  • Data only
  • Cockpit simulations
  • Video generation
  • Ultra-resolution, high-speed video recording

Benefits

  • Implement a new ICD in under a minute
  • ARINC 818 receiver/transmitter
  • Conversion from ARINC 818 to DVI for standard resolutions
  • Compatible with all the features of the Velocity Test Application
  • Create your own library of ICD to cover all your ARINC 818 programs

Key features

  • FC-PH Revision 4.3, ARINC 818-2 ADVB high data rate
  • PCIe Gen3 x8 : >4 Gbps
  • Memory : 2 banks of 128 Mb
  • Power requirement : 20W @ 12V
  • Operating system : Windows 7, 8, 10 64 bits
  • Form factor : PCIe half-length

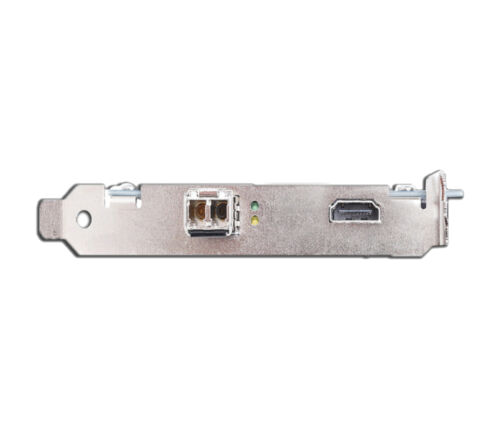

  • Connectors : HDMI
  • Operating temp. : 0-50°C

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 5 Gbps, 6,375 Gbps, 8,5 Gbps
Form Factor PCIe
Supplier Great River Technology
Interface ARINC 818, HDMI
Channels’ number 1
  • ARINC 818 Receiver & Converter
    Velocity cards can capture ARINC 818 video to the software GUI and permit real-time viewing of embedded ARINC 818 data. The cards have a dedicated HDMI 2.0 video port to view the incoming ARINC 818 video on a monitor.
  • ARINC 818 Transmitter & Converter
    Load test images and embedded header data into the Velocity card and transmit using the test software.
