HS SAM

The ARINC 818 high-speed stand-alone module (HS SAM) from Great River Technology is an invaluable tool for ARINC 818 testing. The HS SAM can be used as a portable signal converter, splitter, test pattern generator, or continuity tester. It comes standard with an A/C adaptor and is also compatible with A/C 28VDC.
GRT also offers a rugged, flyable version of the HS SAM. This module is appropriate for flight test or production programs, and can be certified according to DO 160, or DO 254.

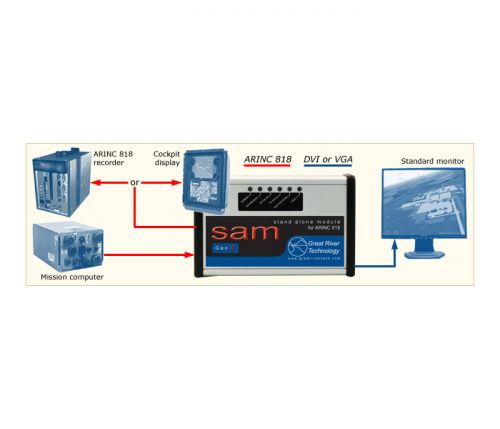

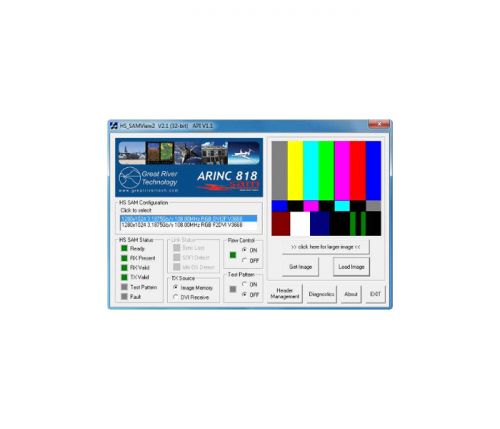

GRT can configure an HS SAM with link rates up to 4.25 Gbps. Each unit can fulfill one of these two key functions :
– ARINC 818 to DVI converter
– DVI to ARINC 818 converter with line-spy capability
Both configurations generate test patterns.

Technical sheet
Description
Attributes
Reference

Applications

  • Development lab
  • Simulator settings
  • Aircraft production facilities
  • Flight testing

Key features

  • Stand-alone case

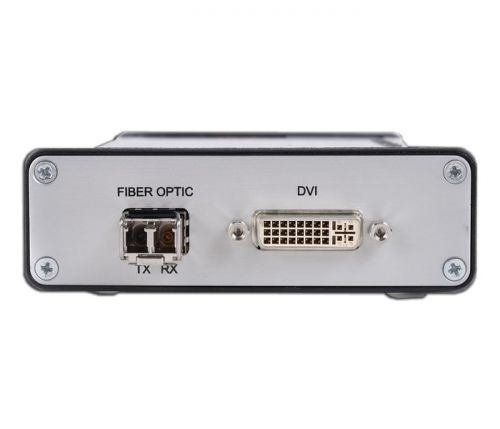

  • ARINC 818 to DVI or VGA conversion
  • DVI to ARINC 818 conversion
  • View video ARINC 818 DVI or VGA
  • Rate 1 to 4 Gbps
  • Single or double fiber
  • Simple mode or multi-mode

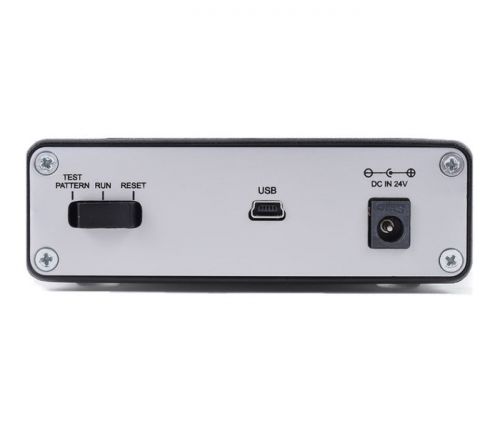

  • 28VDC compatible power supply
  • Rugged version available

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps
Form Factor Module
Supplier Great River Technology
Interface ARINC 818, DVI
Link Optical fiber
Channels’ number 1
  • HS SAM
    High-speed stand-alone module ARINC 818 to DVI or DVI to ARINC 818 on Fiber converter.
  • HSC SAM (High-Speed Coax)
    High-speed Coax stand-alone module ARINC 818 to DVI or DVI to ARINC 818 on Coax converter.
