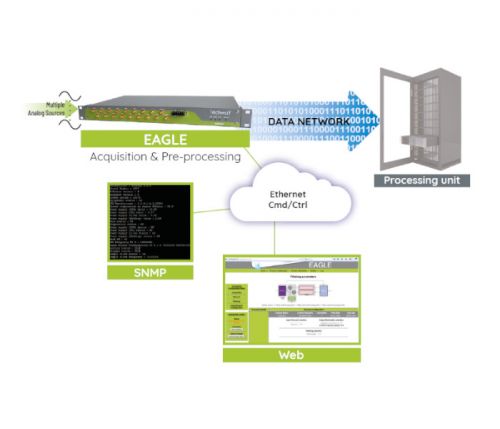

EAGLE is an unique “narrow band ADC front-end” solution which allows to manage multi-channel acquisition and to offload data pre-processing stages from real-time calculators. EAGLE shares the processed data with the communication network making this acquisition solution highly-scalable.

EAGLE solutions are ready-to-use and user-friendly. Data processing algorithms are included and configurables thanks to an intuitive Web interface.

These narrow band ADC front-end solutions are used in major projects as European Space Agency projects or to equip new passive RADAR.

Technical sheet
Description
Attributes
Reference
Documents

Applications

  • Passive RADAR
  • Phase-array RADAR
  • Over-the-horizon RADAR
  • Seismology
  • Transmission
  • Scientific research :
    • Multi-sensor systems

Benefits

  • Pre-configured FPGA processing
  • Real-time pre-processing
  • Cmd/Ctrl : Web and SNMP
  • Low cost per analog channel
  • Data offload over 10 GbEth
  • All-inclusive solution
  • Scalable architecture

Key features

  • Up to 16 analog input
  • Up to 125 MSPS sampling frequency
  • Embedded DDC & windowing for each channel
  • FPGA processing
  • Bypass mode (full bandwidth)
  • Data output : 10 GbEth (optical)
  • Power supply : 24 VDC to 50 VDC, 35W max
  • Enclosure : 1U/19″ 280mm depth, <4kg
Integrated solutions
Channels’ number 16
Environment Commercial, Industrial
Form Factor Box
Supplier TECHWAY
I/O 10GbE
  • EAGLE_16-125 (Acquisition)
    1U 19’’ pre-configured multi-channel acquisition box, up to 16 analog inputs @ 125 MSPS.
  • EAGLE_Sync-125 (Synchronization)
    1U 19’’ synchronization box up to 8 EAGLE_16-125.

Xilinx Member

TECHWAY is a Xilinx Certified Partner since 2017. Discover EAGLE on Xilinx Portal.
