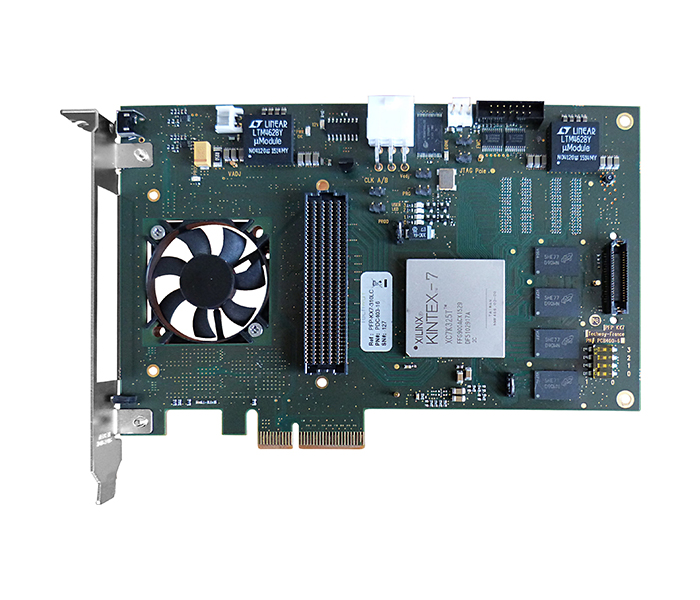

PFP-KX7+ is a product range of FPGA board PCIe with FMC+ slot based on AMD (Xilinx) Kintex-7. PFP-KX7+ boards are highly-versatile and provide real-time processing thanks to their perfect technology mix : Kintex-7 FPGA, FMC+ site, DDR3 memories, management system, 12 HSS on FMC+, programmable clock generator, etc.

Fully compliant with VITA 57.4 standard, these FPGA board PCIe with FMC+ connector were designed to easily fit into existing system or brand-new architecture.

Not only development boards, the PFPs are deployable platforms in use by several OEM with field proven 24/7 operations.

The PFP boards can be integrated in standard PCs environment (drivers available for both Windows and Linux) or in stand-alone mode in your own enclosure.

| NEW | A new Development Kit version is available. Discover its new features below.

Technical sheet
Description
Attributes
Reference
Documents

Applications

  • RADAR
  • Co-processing
  • Prototyping
  • Medical imaging
  • Data-recording
  • High-speed data-switching

Advantages

  • PCIe Gen2 compliant
  • Based on AXI4 interface
  • Stand-alone use
  • Cost-effective
  • Modularity : FMC+ site, User I/Os
  • High-speed protocol : Up to 12 HSS @ 10 Gbps

Key features

  • PCIe x4 Gen2 (16 Gbps)
  • Xilinx Kintex-7 FPGA
  • User I/Os connector
  • HPC FMC or HSPC FMC+ connector
  • Up to 12 HSS links @ 10 Gbps per link
  • 2x 512MB DDR3 memory banks @ 1600 Mbps
  • Programmable oscillators or clock generator
  • Power supply, temperature, fan monitoring
  • Windows or Linux support

Development Kit – New features

  • New installation procedure
  • New Linux driver version supporting newer kernels
  • Evolution of the EasyCheck+ test program
  • New example designs
  • Better fan control
  • Documentation update
FPGA boards
Environment Commercial, Industrial
FPGA family Kintex-7
Form Factor PCIe
I/O A/D, D/A, Optical, SFP, sFPDP, GbE, 10GbE, 25GbE, 40GbE, LVDS
Interface FMC, FMC+
PCIe PCIe x4 Gen2
Supplier TECHWAY
  • PFP-KX7-310LC*
    Based on the Xilinx Kintex-7 325T-2 FPGA, this carrier board features programmable oscillators. It can accommodate all FMC boards compliant with the VITA 57.1 standard.
  • PFP-KX7-410LC*
    Based on the Xilinx Kintex-7 410T-2 FPGA, this carrier board features programmable oscillators. It can accommodate all FMC boards compliant with the VITA 57.1 standard.
  • PFP-KX7_Plus-310LC
    Based on the Xilinx Kintex-7 325T-2 FPGA, this carrier board features programmable clock generator. It can accommodate all FMC+ boards compliant with the VITA 57.4 standard.
  • PFP-KX7_Plus-410LC
    Based on the Xilinx Kintex-7 410T-2 FPGA, this carrier board features programmable clock generator. It can accommodate all FMC+ boards compliant with the VITA 57.4 standard.

*Not recommended for new designs
