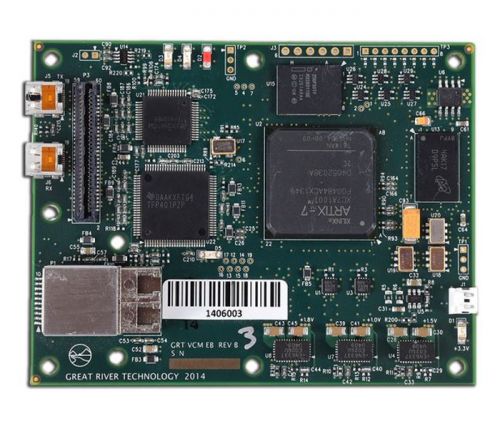

arinc 818 embedded converter - Embedded Boards down

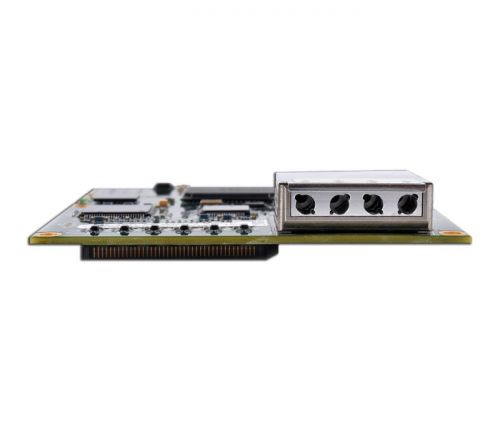

arinc 818 embedded converter - Embedded Boards flat

EB ARINC 818

Great River Technology’s proven ARINC 818 conversion technology is now available in embedded boards designed for aerospace applications.
EB (Embedded Boards) converters integrate DVI into ARINC 818 systems, extending the life of legacy DVI equipment.

Technical sheet
Description
Attributes
Reference

Applications

  • All aerospace applications up to DO-254 DAL A

Benefits

  • Firmware matched to the ICD project
  • Customizable form factor
  • External watch dog timer monitoring circuit
  • Reconfiguration time of less than 250 ms
  • SEU detection and recovery logic
  • Status discrete signals to identify normal operation and video stream faults
  • Stale image detection and annunciation logic

Key features

1 channel2 channels3 channels
ConversionARINC 818 to DVI1 channel DVI to ARINC 818
1 channel ARINC 818 to DVI
2 channels DVI to ARINC 818
1 channel ARINC 818 to DVI
Power< 5W7W< 8W
Dimensions69 x 71mm75 x 90mm76 x 97mm
ConnectorSAMTEC 130SAMTEC 130SAMTEC 140
Fiber connectorARINC 801 or LCLCARINC 801
ARINC 818
Form Factor Module
Supplier Great River Technology
Interface ARINC 818, DVI
Link Optical fiber
Channels’ number 1, 2, 3
  • EB 1-Channel
    ARINC 818 embedded board converter 1 channel ARINC 818 to DVI.
  • EB 2-Channel
    ARINC 818 embedded board converter 1 channel DVI to ARINC 818 and 1 channel ARINC 818 to DVI.
  • EB 3-Channel
    ARINC 818 embedded board converter 2 channels DVI to ARINC 818 and 1 channel ARINC 818 to DVI.
