Xf Tuner

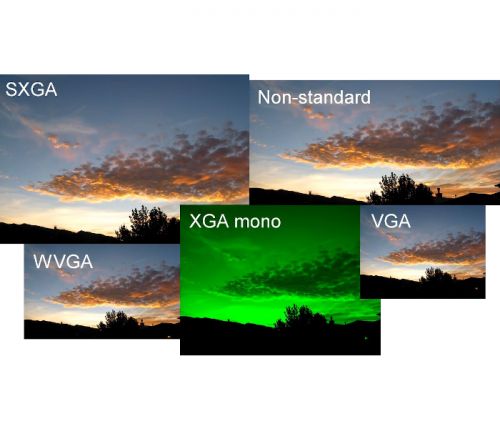

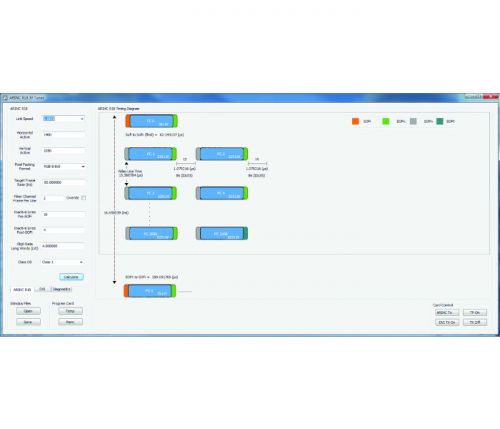

ARINC 818 protocol can accommodate virtually any video format. With such broad flexibility in a protocol, Xf Tuner quickly adjusts video format characteristics, easily injects errors into an ARINC 818 stream and ensures protocol compliance, all by means of an intuitive software GUI.
The Xf Tuner is a universal ARINC 818 video stream generator that can be used to implement any ICD (Interface Control Document).
Ideal for testing ARINC 818 receivers in cockpit displays, flight recorders or switches, it allows link rates of 1.0625, 2.125, 3.1875 or 4.25 Gbps.

Technical sheet
Description
Attributes
Reference

Applications

  • Implementation of interface control document (ICD)
  • Display/receiver development
  • Robustness testing
  • Qualification testing
  • Creation of a library of protocols that can be loaded to the Tuner card

Key features

  • Link rates up to 4,25 Gbps
  • Protocol adjustments in real time
  • Error injection options
  • Object 0 management

ARINC 818 protocol

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

Video

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps
Form Factor Module
Supplier Great River Technology
Interface ARINC 818
  • Xf Tuner

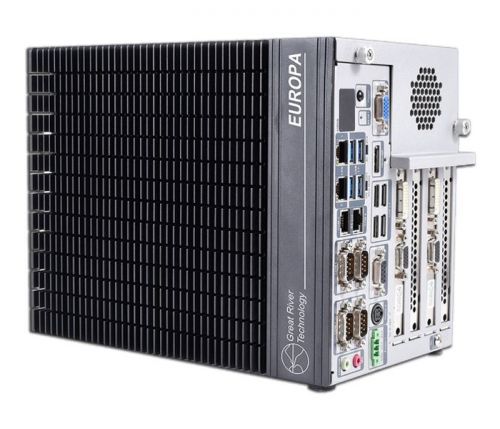

    ARINC 818 video stream generator for link rates up to 4,25 Gbps. Available as an option or upgrade to Europa and Titan systems.
