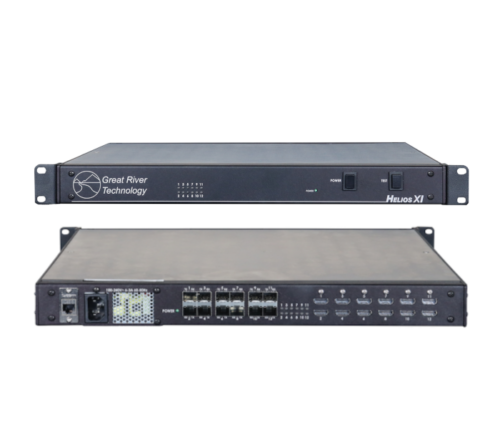

Helios offers up to 12 channels of ARINC 818-to-HDMI or HDMI-to-ARINC 818 conversion in a 1U 19-inch rackmount system.
The ARINC 818-to-HDMI version provides a way to view live ARINC 818 video on common HDMI monitors. HDMI outputs can also select one of several ARINC 818 inputs, making it well suited for connection to an HDMI recorder.
The HDMI-to-ARINC 818 version provides an easy method of transferring HDMI video onto ARINC 818.

Technical sheet
Description
Attributes
Reference

Applications

  • Pilot training simulators
  • Cockpit development
  • Flight test recording of ARINC 818
  • Factory test of ARINC 818 equipment

Key features

  • Up to 12 channels
  • 1U 19-inch rack
  • 100-240 VAC (28 VDC option)
  • HDMI connectors
  • SFP optical connectors
  • A818 to HDMI or HDMI to A818
  • A818 link rates from 1x to 8x
  • Remote based controls (LAN)
    • C API or Web Interface
    • Query status
    • Real-time Object 0 update
    • Control test pattern outputs

Functionalities

HDMI resolutions

  • XGA (1024×768) @ 60Hz
  • SXGA (1280×1024) @ 60Hz
  • SXGA+ (1400×1050) @ 60Hz
  • WXGA (1440×900) @ 60Hz
  • UXGA (1600×1200) @ 60Hz
  • HD (1920×1080) @ 60Hz/30Hz
  • 4K (3840×2160) @ 30Hz

ARINC 818 ICDs

  • Factory configured to match your ICD
  • Any resolution
  • Any frame rate
  • Multiple pixel types
    • 24-bit color
    • 8-bit monochrome
    • 16-bit monochrome
    • 16-bit 5:6:5 color
    • 32-bit ARGB or RGBA
    • YCbCr

ARINC 818

ARINC 818: Avionics digital video bus

The ARINC 818 video interface and protocol standard serves high-bandwidth, low-latency, uncompressed digital video transmission.

The standard has been advanced by ARINC and the aerospace community to meet the stringent needs of high-performance digital video. The protocol was adopted, prior to its official release, by major aerospace and military programs, and has become the de facto standard for high-performance military video systems.

For more information on the ARINC 818 protocol: http://www.arinc-818.eu/en/

ARINC 818
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 5 Gbps, 6,375 Gbps, 8,5 Gbps
Form Factor Box
Supplier Great River Technology
Interface ARINC 818, HDMI
Link Optical fiber
Channels’ number 12
  • Helios
    Up to 12 channels ARINC 818/HDMI converter system, 1U 19-inch rackmount format.
