ARINC 818 configurable stand alone converter

arinc 818 configurable stand alone converter - SAM G3c XI confrontation
arinc 818 configurable stand alone converter - SAM G3 XI back
arinc 818 configurable stand alone converter - SAM G3 XI Front
arinc 818 configurable stand alone converter - SAM G3c XI 1
arinc 818 configurable stand alone converter - SAM G3c XI 2
arinc 818 configurable stand alone converter - SAM G3 XI logiciel
arinc 818 configurable stand alone converter - SAM G3c XI confrontation
arinc 818 configurable stand alone converter - SAM G3 XI back
arinc 818 configurable stand alone converter - SAM G3 XI Front
arinc 818 configurable stand alone converter - SAM G3c XI 1
arinc 818 configurable stand alone converter - SAM G3c XI 2
arinc 818 configurable stand alone converter - SAM G3 XI logiciel

SAM G3 XI

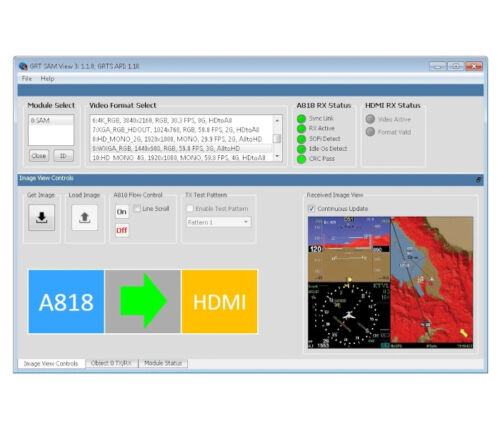

SAM G3 XI is a portable converter module that converts ARINC 818 to/from HDMI. Thanks to its GRT XI software, it allows users to configure up to 15 video formats, allowing them to adjust the link rate, pixel packaging mode, resolution, and direction of conversion as they wish. The SAM G3 XI offers real-time monitoring of status indicators. The user can select different conversions (ARINC 818 to/from HDMI) tuned to different ARINC 818 data rates (up to 10Gbps), video resolutions and pixel types. The converter is available in two versions:

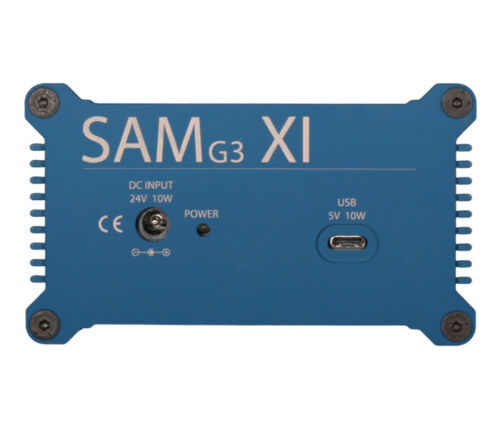

– SAM G3 XI, with an intuitive touch screen for basic control of the device

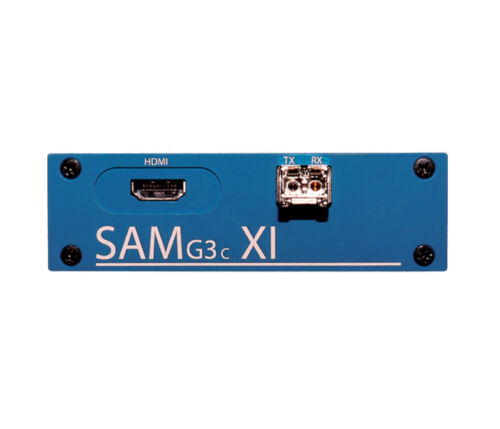

[New] SAM G3c XI, compact and without screen.

Description
Attributes
Reference
Documents

Applications

  • ATP for Production Displays
  • Display Development
  • Cockpit Simulation
  • Test Pattern Generation
  • High-Resolution, High-Speed Video Recording

Benefits

  • Implement a new video format (ICDs) in minutes
  • Create a library of video formats
  • Clone configurations to Velocity XI, Helios XI, or other SAM G3 XI devices

Key features

  • ARINC 818 to/from HDMI conversion
  • Rate : 1.0625, 2.125, 3.1875, 4.25, 5.0, 6.375, 8.5, 10.0 Gbps

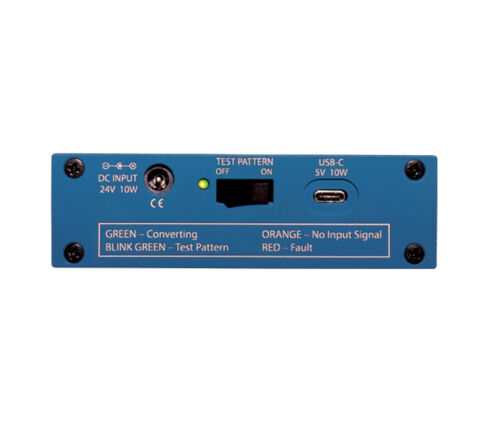

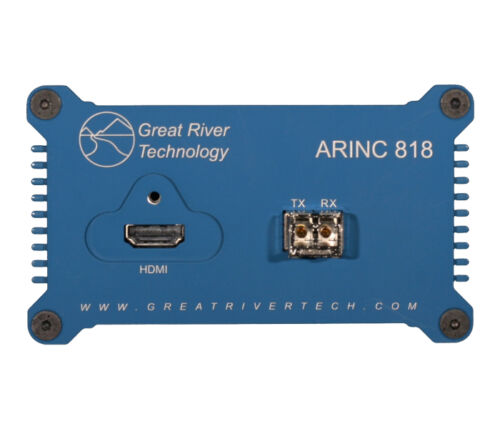

  • Connectors : HDMI, SFP, DC Power Port, USB-C
  • Pixel Types : RGB 8:8:8, RGB 5:6:5, YCbCr 422, Monochrome 8-bit, Monochrome 16-bit
  • Form factor : aluminium housing, 16 x 11.4 x 6.35 cm, 0.82 kg
  • Operating temperature : 0-50°C
  • Power supply : 15W @ 5V ou 28V
  • HDMI resolutions :
    • XGA (1024×768) @ 60Hz
    • HD (1280×720) @ 60Hz
    • WXGA (1280×800) @ 60Hz
    • SXGA (1280×1024) @ 60Hz
    • SXGA+ (1400×1050) @ 60Hz
    • WXGA+ (1440×900) @ 60Hz
    • UXGA (1600×1200) @ 60Hz
    • HD+ (1920×1080) @ 60Hz
    • DWide (2560×1024) @ 60Hz
    • 4K (3840×2160) @ 30Hz

ARINC 818 Protocol

To find out more about ARINC 818, its history, market, conditions, resources and news, visit its website : https://www.arinc818.com/

ARINC 818
Channels’ number 1
Form Factor Module
Interface ARINC 818, HDMI
Link Optical fiber
Rate 1,0625 Gbps, 2,125 Gbps, 3,1875 Gbps, 4,25 Gbps, 5 Gbps, 6,375 Gbps, 8,5 Gbps, 10 Gbps
Supplier Great River Technology
  • SAM G3c XI

High-speed configurable stand-alone module without screen for ARINC 818 to/from HDMI conversion up to 10 Gbps.

  • SAM G3 XI

High-speed configurable stand-alone module with touch screen for ARINC 818 to/from HDMI conversion up to 10 Gbps.
