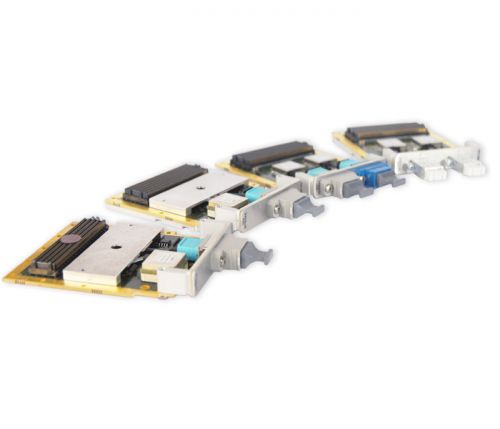

rugged optical fmc - wildcatfmc gamme

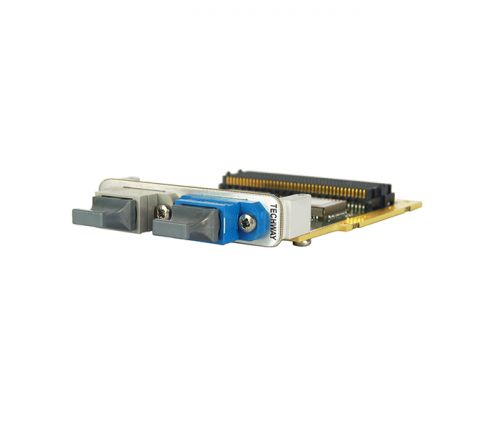

rugged optical fmc - DSC00032

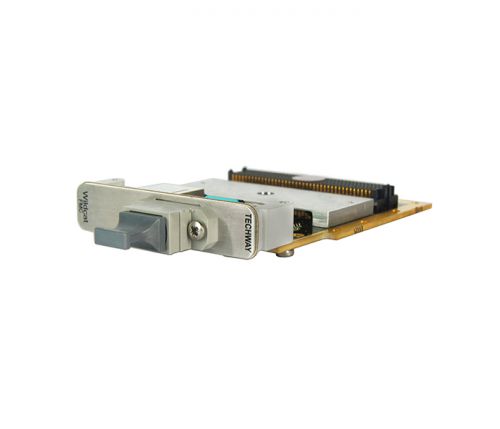

rugged optical fmc - DSC00057

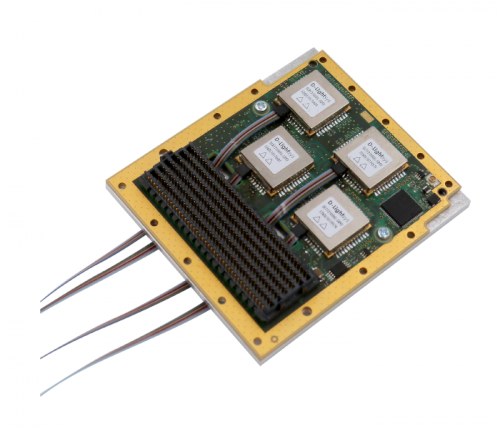

rugged optical fmc - WildcatFMC 24 12
WildcatFMC - Rugged optical FMC
rugged optical fmc - wildcatfmc gamme
rugged optical fmc - DSC00032
rugged optical fmc - DSC00057
rugged optical fmc - WildcatFMC 24 12

WildcatFMC – RADIALL D-Lightsys®

Optical communications have become the new standard in harsh and demanding environments. TECHWAY brings you a state-of-the-art solution with the WildcatFMC product range. These rugged optical FMC boards are dedicated to markets where customers have strong environmental requirements.

Based on the latest RADIALL’s D-Lightsys® components, WildcatFMC solutions are rugged optical FMC which offer up to 12 optical links at 12 Gbps per link. D-Lightsys® technology offers a very small footprint and extended link budget for applications where long term data transmission reliability is required. The low power consumption makes these modules especially suited for on board applications (aircraft, UAV, satellites).

All the WildcatFMC mezzanine cards can be easily integrated into existing systems or into brand-new architectures. Compliant with VITA 57.1 and VITA 57.4 standards, they fit all FMC and FMC+ carrier boards.

These rugged optical FMC are compliant with both air and conduction cooled environments.

Technical sheet
Description
Attributes
Reference
Documents

Applications

  • Video broadcast & switching
  • Legacy system upgrade
  • RADAR/SONAR
  • Electronic warfare
  • Telecom
  • Avionics

Advantages

  • Ready-to-use : 100% FMC and FMC+ compliant
  • Easy-to-use : No specific firmware required
  • Protocol agnostic
  • Suitable for legacy issue
  • Air or conduction cooled

Key features

  • VITA 57.1 and 57.4 compliant
  • Up to 12 full duplex links
  • Up to 12 Gbps per link
  • Front connection : MTP or C-MTITAN connectors
  • Rear connection on demand
  • Programmable oscillators
  • Air cooled
    • Temperature range : -20°C to 70°C
    • MTP connector
  • Conduction cooled
    • Temperature range : -40°C to 85°C
    • C-MTITAN connector

D-Lightsys® technology

RADIALL’s D-Lightsys® transceivers have been flying with military and commercial aircrafts and have proven to be the perfect solution for demanding applications.

The new 10+ G range utilizes D-Lightsys® technology and offers the unique benefits, including a very small footprint and extended link budget for applications where long term data transmission reliability is required. The low power consumption makes these modules especially suited for on board applications (aircraft, UAV, satellites).

  • Proven technology
  • Small footprint
  • Low consumption
  • Qualified for harsh environments
  • Wide operating parameters
  • Benefits of RADIALL’s optical interconnect range
FMC boards
Connector HPC, HSPC, MTP, C-MTITAN
Speed 10 Gbps, 12 Gbps
Environment Industrial, Rugged
Supplier TECHWAY
I/O Optical
Channels’ number 4, 12
Stackable No
Techno. D-Lightsys (RADIALL)
  • WildcatFMC-4_0_MTP
    VITA 57.1 Optical FMC, 4 full duplex links @ 10 Gbps, Front MTP12-F connector.
  • WildcatFMC-4_0_MTITAN
    VITA 57.1 Optical FMC, 4 full duplex links @ 10 Gbps, Front C-MTITAN connector.
  • WildcatFMC-4_1_MTP
    VITA 57.4 Optical FMC, 4 full duplex links @ 12 Gbps, Front MTP12-F connector.
  • WildcatFMC-4_1_MTITAN
    VITA 57.4 Optical FMC, 4 full duplex links @ 12 Gbps, Front C-MTITAN connector.
  • WildcatFMC-12_1_MTP
    VITA 57.4 Optical FMC, 12 full duplex links @ 12 Gbps, Front 2x MTP12-F connectors.
  • WildcatFMC-12_1_MTITAN
    VITA 57.4 Optical FMC, 12 full duplex links @ 12 Gbps, Front 2x C-MTITAN connectors.

Options : Rear I/O, 24 links, coating and more options are available. Feel free to contact us.
