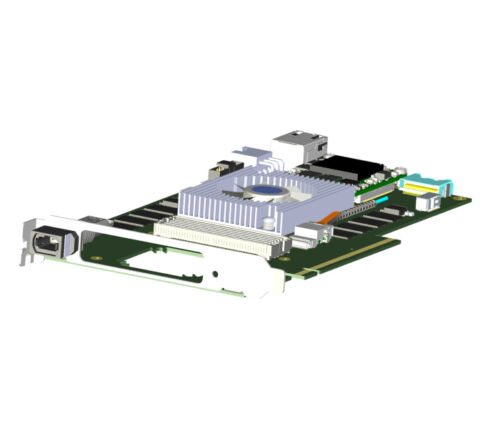

kintex ultrascale+ pcie board - PFP IV right 1

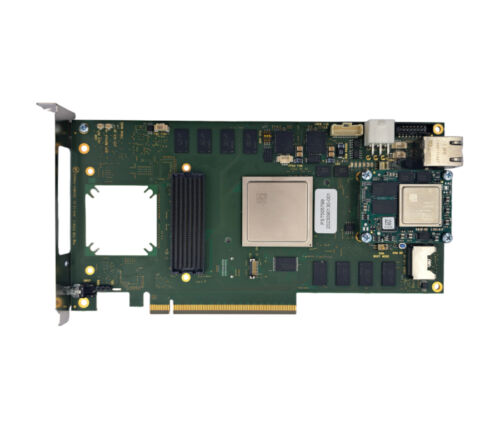

kintex ultrascale+ pcie board - PFP IV endplate 1

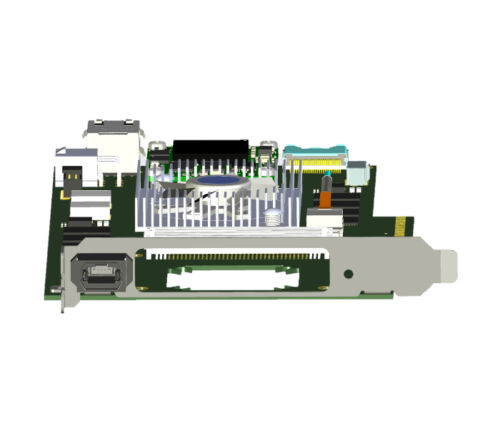

kintex ultrascale+ pcie board - PFP IV endplate fan
kintex ultrascale+ pcie board - PFP IV front fan
kintex ultrascale+ pcie board - PFP IV right 1
kintex ultrascale+ pcie board - PFP IV endplate 1
kintex ultrascale+ pcie board - PFP IV endplate fan
kintex ultrascale+ pcie board - PFP IV front fan

PFP-IV

The new PFP-IV is a multi-purpose Kintex UltraScale+ PCIe board with FMC+ site based on the powerful AMD (Xilinx) Kintex UltraScale+ FPGA. This board is dedicated for extreme high-speed applications such as 100 GbEth communications, 4/6 GHz ADC/DAC, ARINC 818, AURORA, JESD, sFPDP, etc.

Kintex UltraScale+ devices provide the best price/performance/watt balance, delivering a cost-effective solution for applications that require high-end capabilities.

These Kintex UltraScale+ PCIe boards are highly versatile thanks to their perfect technology mix: Kintex UltraScale+ FPGA, FMC+ site, DDR4 memories, SoM based on Zynq UltraScale+ MPSoC, management system, 28 Gbps optical links, etc. The optional SoM offers powerful CPU capabilities, allowing offloading of complete application (processing + management).

Fully compliant with common standards (VITA 57.4, PCIe, AXI4, etc.), these Kintex UltraScale+ PCIe boards were designed to easily fit into existing system or brand-new architecture. PFP-IV can be integrated in standard PCs environment or in stand-alone mode in your own enclosure.

Technical sheet
Description
Attributes
Reference
Documents

Applications

  • RADAR
  • Telecom
  • Electronic Warfare
  • Embedded tool
  • Co-processing
  • Test bench

Advantages

  • High-speed communication
  • High capacity processing
  • SoM : FPGA + Processing capability
  • Cost-effective
  • PCIe or Stand-alone mode
  • VITA 57.4 FMC+ compliance
  • Advanced kit (Windows & Linux)

Key features

  • Kintex UltraScale+ FPGA
  • Zynq UltraScale+ MPSoC SoM (option)
  • AXI4 interface
  • FPGA interfaces :
    • PCIe Gen3 x16
    • FMC+ site :
      • x16 HSS up to 28 Gbps with KUP11
      • x20 HSS up to 28 Gbps with KUP15
    • FireFlyTM site (x4 HSS up to 28 Gbps)
    • User I/O (x16 low-speed, x7 high-speed, x2 HSS)
  • MPSoC SoM interfaces :
    • microSD
    • Ethernet
    • USB3.0
  • x2 DDR4 4GB memory banks
  • MPSoC SoM boot options :
    • microSD
    • e.MMC
    • QSPI
FPGA boards
Environment Commercial, Industrial
FPGA family Kintex UltraScale+
Form Factor PCIe
I/O A/D, D/A, Optical, SFP, sFPDP, GbE, 10GbE, 25GbE, 40GbE, LVDS
Interface FMC+
PCIe PCIe x16 Gen3
Supplier TECHWAY
  • PFP-IV_11
    PCIe FPGA Platform (PFP) with Kintex UltraScale+ KUP11 FPGA, PCIe x16 Gen3, FMC+ site.
  • PFP-IV_15
    PCIe FPGA Platform (PFP) with Kintex UltraScale+ KUP15 FPGA, PCIe x16 Gen3, FMC+ site.
Contact us

Configurations

  • PFP-IV_11_Opt
    PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @25G.
  • PFP-IV_11_SoM
    PCIe FPGA Platform (PFP) with Zynq UltraScale+ ZU02CG, 4GB DDR4 System-on-Module (SoM).
  • PFP-IV_11_Opt_SoM
    PCIe FPGA Platform (PFP) with Zynq UltraScale+ ZU02CG, 4GB DDR4 System-on-Module and optical FireFly™ module 4 links @25G.
  • PFP-IV_15_Opt
    PCIe FPGA Platform (PFP) with optical FireFly™ module 4 links @25G.
  • PFP-IV_15_SoM
    PCIe FPGA Platform (PFP) with Zynq UltraScale+ ZU02CG, 4GB DDR4 System-on-Module (SoM).
  • PFP-IV_15_SoM
    PCIe FPGA Platform (PFP) with Zynq UltraScale+ ZU02CG, 4GB DDR4 System-on-Module and optical FireFly™ module 4 links @25G.
