ADC125 FMC

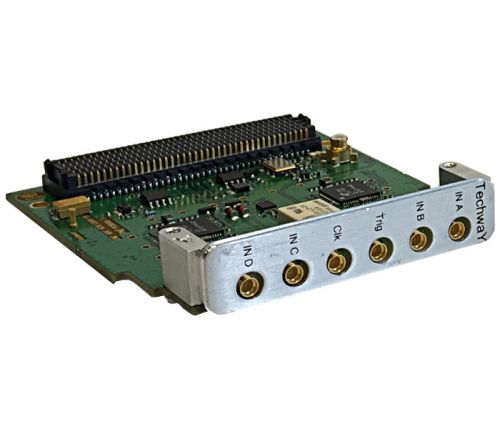

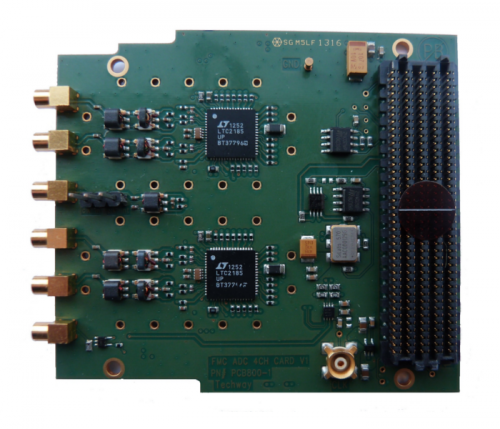

ADC125 is a fully VITA 57.1 compliant ADC FMC (FPGA Mezzanine Card) which offers 4 16 bits A/D channels up to 125 MSPS.
ADC125 FMC is based on 2 dual Analog-to-Digital converters (ADC) from Linear Technology : the LTC2185.
This FPGA mezzanine card allows you to sample your signals with your own external sampling clock. You also get the capability to use the on-board sampling clock. A trigger input is available to be able to synchronize all channels with a one sample accuracy.
You are able to fine-tune the ADCs through the I²C bus. ADC gain, bias and delay can be set-up according to your needs. Temperature and power monitoring can be check directly from the FPGA.

Technical sheet
Description
Attributes
Reference

Applications

  • RADAR
  • SONAR
  • Medical equipment
  • Aerospace
  • Test & measurement

Advantages

  • Ready-to-use : VITA 57.1 compliant
  • Easy-to-use : Free SDK with example design
  • Cost-effective solution

Key features

  • 2x dual A/D converters
  • 4x 16 bits A/D channels
  • Up to 125 MSPS
  • FMC connector
  • On-board sampling clock
  • Operating temperature range : 0°C to 50°C
FMC boards
Connector HPC
Environment Commercial, Industrial
Supplier TECHWAY
I/O A/D
Channels’ number 4
Resolution 16-bit
Stackable No
  • FMC-ADC_4CH_125
    VITA 57.1 FMC with 4 A/D channels 16 bits up to 125 MSPS.
