SFP/SFP+ FMC

Getting some copper and optical interfaces is mandatory in every project. Therefore, being stuck with an insufficient number of interfaces could be a real handicap.

TECHWAY provides a very cost-effective solution with the FMC card SFP SFP+. This fully VITA 57.1 compliant mezzanine offers up to 4 SFP SFP+ slots, supporting both copper or fiber interfaces. Indeed, the board is protocol-agnostic and allows up to 10 Gbps per link.

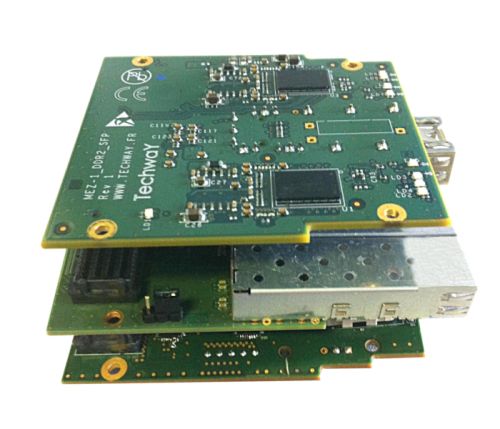

As an option, the FMC card SFP SFP+ comes with an extra upper FMC connector which routes all unused signals to another mezzanine.

Technical sheet
Description
Attributes
Reference

Application

  • Telecom
  • High-speed data-switching
  • Prototyping
  • Digital video
  • Optical or copper transceiver

Advantages

  • Ready-to-use : VITA 57.1 compliant
  • Easy-to-use : Free SDK with example design
  • Cost-effective solution
  • High-speed protocol dedicated
  • Scalable FMC slot

Key features

  • 3 or 4 SFP/SFP+ slots
  • Up to 10 Gbps
  • Programmable oscillator

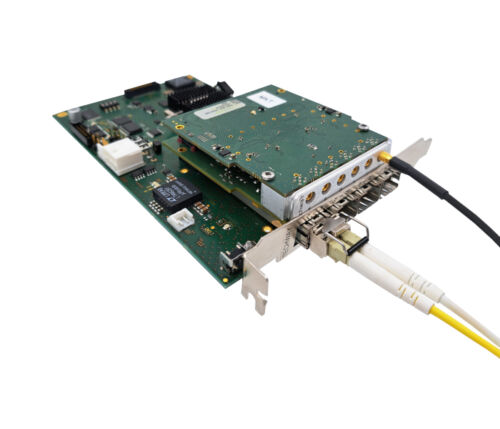

  • FMC connector on the top for mezzanine stack
  • Operating temperature range : 0°C to 50°C
  • Protocols :
    • Ethernet (1 and 10 Gbps)
    • ARINC 818
    • sFPDP
    • Fiber Channel
    • Xilinx Aurora
    • User-defined
FMC boards
Connector SFP/SFP+, HPC
Speed 10 Gbps
Environment Commercial
Supplier TECHWAY
I/O SFP
Channels’ number 3, 4
Stackable Yes
Techno. SFP
  • FMC_SFP/SFP+_101
    FPGA mezzanine card with 4 SFP slots, a programmable oscillator and an extra FMC slot.
  • FMC_SFP/SFP+_104
    FPGA mezzanine card with 3 SFP slots and a programmable oscillator.
  • FMC_SFP/SFP+_105
    FPGA mezzanine card with 4 SFP slots and a programmable oscillator.
